| MODEL |

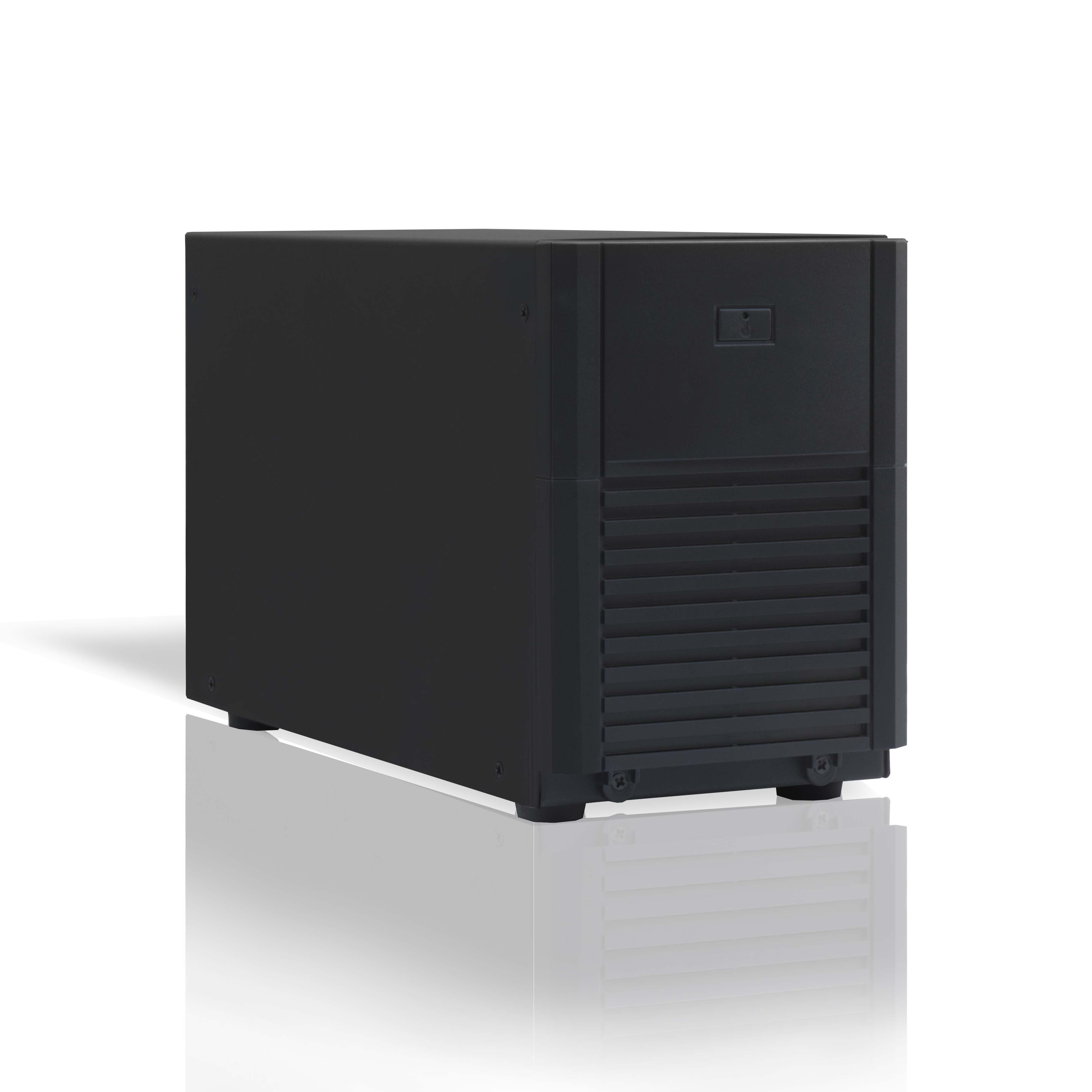

AHA-N700 |
AHA-N700L |

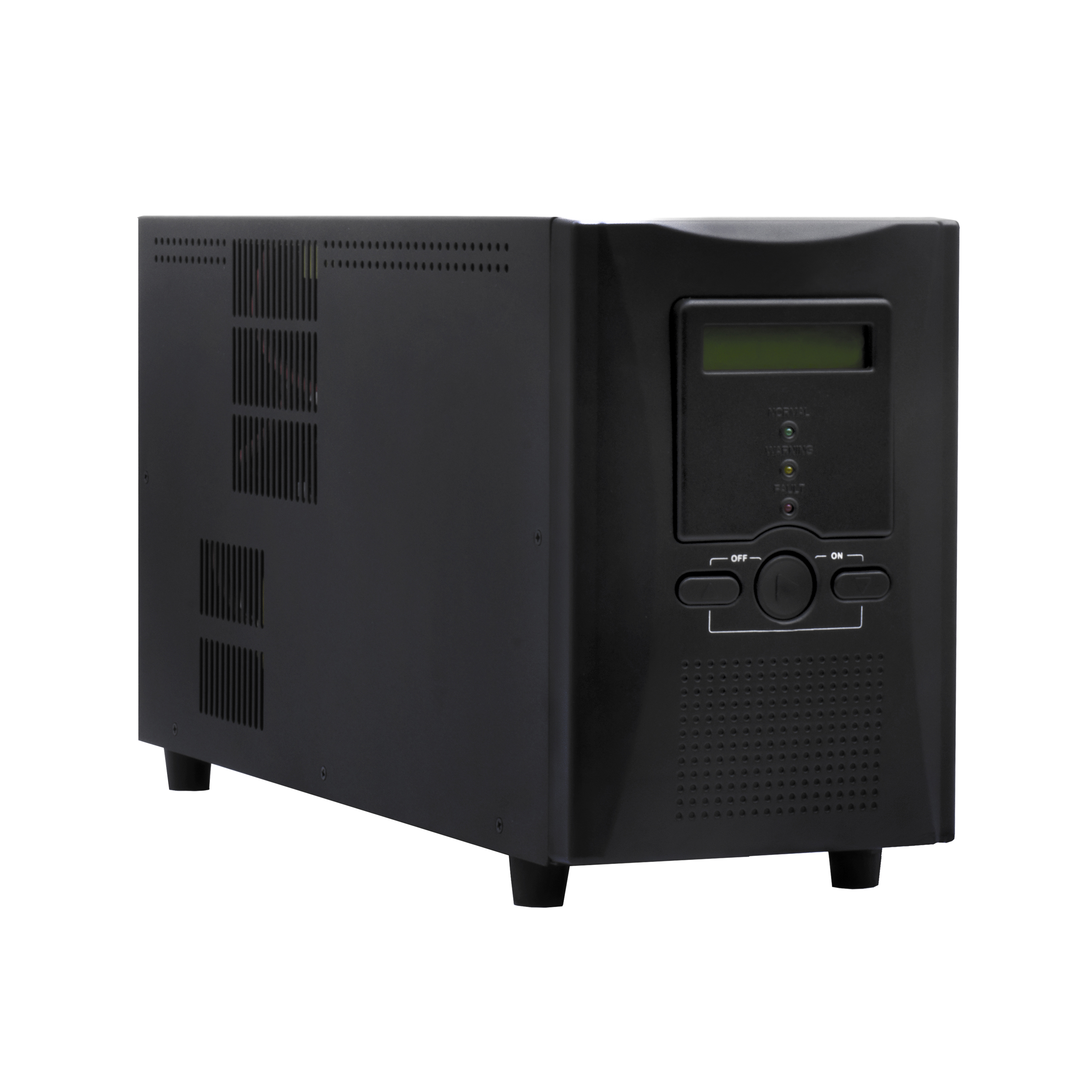

AHA-N1K |
AHA-N1KL |
| Capacity |
VA / Watt |
700VA/420W |
700VA/320W |
1000VA/900W |
1000VA/800W |
| INPUT |
| Voltage Range |
Acceptable Voltage Range |
55Vac-150Vac or 110Vac-300Vac |
| Low Line Transfer |
85Vac / 55Vac or 170Vac / 110Vac( Based on load percentage 100% - 60% / 60% - 0%) |
| Line Low Return |
90Vac / 110Vac or 180Vac / 120Vac ± 5 % |
| Line High Transfer |
150Vac or 300Vac ± 5 % |
| Line High Return |
145Vac or 290Vac ± 5 % |
| Frequency Range |
50Hz / 60Hz Auto sensing ( 47Hz - 53Hz / 57Hz - 63Hz) |
| Phase |
Single phase with ground |
Power Factor
(I/P:220V Battery full charged, output @ full load) |
> 0.99 @ Nominal voltage (100 % load) |
OUTPUT |
| Waveform |
Pure sine wave |
| Voltage |
110Vac/115Vac/120Vac or 220Vac/230Vac/240Vac |
| Voltage Regulation |
Line Mode |
± 1 % |
| Battery Mode |
± 1 % |
| Frequency Regulation |
Line Mode |
Synchronize to AC main |
| Battery Mode |
50Hz / 60Hz ± 0.1 Hz |
| Current Crest Ratio |
4 : 1 |
| Harmonic Distortion |
≦ 4% (Linear load), ≦ 6%(Non-linear load) |
| Transfer Time |
AC Mode to Batt. Mode |
Zero |
| Inverter Mode to Bypass |
4 ms (Typical) |
| Efficiency |
AC Mode
(Battery full charged) |
> 89.5 % |
| Battery Mode |
> 86.5% |
> 88.5% |
| Overload Protection |
Line Mode |
110% - 120% : 10s , > 120% : 200ms
(and go to bypass. If the overload condition is remover, the unit will return back to inverter automatically) |
| Battery Mode |
110% - 120%: 10s , > 120% : 200ms then UPS shutdown |
| DC START |
| Cold Start |
Yes |
BATTERY |
| Voltage |
12Vdc |
24Vdc |
| Type |
12V / 7Ah |
Depending on the capacity of external batteries |
12V / 7Ah |
Depending on the capacity of external batteries |
| Quantity |
1 |
2 |
| Recharging Current(max.) |
1.0A |
4A or 9A |
1.0A |
4A or 8A |
| Charging Voltage |
13.6Vdc ± 1% |
27.3Vdc ± 1% |
DISPLAY |
| LCD (Option) |
N / A |
UPS status, I/P&O/P voltage/frequency, load level, battery voltage |
| LED |
Green: Normal (Continuously), Warning (Flash) |
Normal (Green), Warning (Amber), Fault (Red) |
AUDIBLE ALARM |
| Battery Mode |
Beeping every 4 seconds |
| Low Battery |
Beeping every second |
| UPS Fault |
Beeping continuously |
| Overload |
Beeping twice per second |
COMMUNICATION PORT |
| Standard Configuration |
HID (Human Interface Device) |
ENVIRONMENT |
| Operation Temperature |
0-40 ℃(32-104 ℉) |
| Relative Humidity |
0-95% (non-condensing) |
| Audible Noise(At 1M) |
< 55dBA |
PHYSICAL |
| Dimensions(W*H*D)mm |
115 *163 * 271 |
145 * 300 * 325 |
| Net Weight(Kg) |
5.0 |
2.9 |
8.8 |
4.3 |
| ✽ All specifications mentioned above are subject to change without prior notice |
