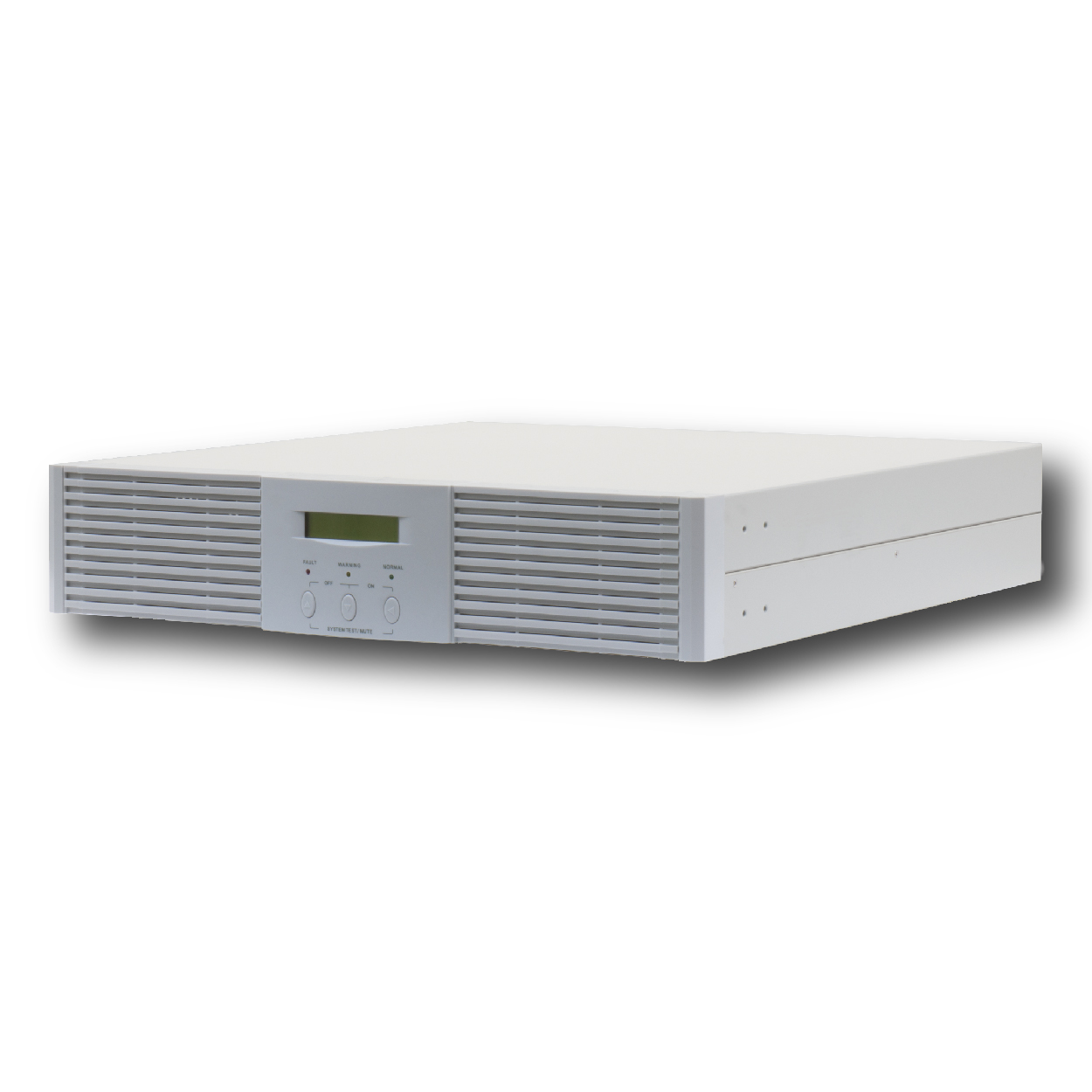

‧ 産品 > 不斷電系統 > AHA-H-V 系列( 高頻機:6K/10K )

	特性與優點
◎	純淨正弦波雙重轉換模式。
◎	較寬的市電電壓輸入範圍，可以工作於惡劣的電源環境下。
◎	高輸入功率因數，並且具有電池直接開機功能。
◎	輸出功率因數1。
◎	緊急電源關閉(EPO) 接口。
◎	可通過智慧型選配的SNMP及RS-232介面進行遠端監控。
◎	LED 與LCD 顯示UPS的相關狀態資訊。
◎	重量輕，體積小，易於運輸及安放。

規格
相關下載

MODEL		AHA-603H-V	AHA-104H-V	AHA-603HR-V	AHA-104HR-V
Capacity	VA / Watt	6KVA/6KW	10KVA/10KW	6KVA/6KW	10KVA/10KW
Input
Nominal voltage		220Vac ; 1P2W+G
Nominal frequency		50Hz / 60Hz
Outlet		Terminal blocks
Voltage range		110Vac~300Vac【 load <50% 】
Low voltage transfer		110Vac【 load <50% 】　 110Vac + 2.2* ( load%-50% )【 load 50%~80% 】 176Vac【 load>80% 】
Power factor		≧ 99% 【 100% RCD load, nominal input voltage, nominal load, full battery 】
Battery
Type/Number		Seal Lead Acid battery 12V*20pcs
Built-in		1 set ( 12V*20pcs)		N/A
Charging voltage		273Vdc
Charging current		1A / 2A / 3A / 4A【 Max: 4A 】
Output
Voltage		208/220/230 or 240Vac【power derating 90% for 208Vac】; 1P2W+G
Frequency		50Hz / 60Hz ± 0.1Hz
Outlet		Terminal blocks + IEC outlet * 2		Terminal blocks
Wave-form		True sine wave
Power factor		1
Frequency lock range		50Hz / 60Hz ± 4Hz
Overload ( Line mode)		100%~110% : 10 minutes ; 110%~130% : 1 minute ; >130% : 1 second
Overload ( Battery mode)		100%~110% : 30 seconds；110%~130% : 10 seconds ； >130% : shutdown immediately
Transfer time		0ms
Efficiency
Line mode		93%【 R load 100% 】
Battery mode		91% 【 R load 100% 】
Display
LED		Yes
LCD		Yes
Alarm		Yes
Communication
Connector		RS2321 / Intelligent slot1
Interface card		Option : USB , AS400 or SNMP
Environment
Audible noise		<55dB@1M	<58dB@1M	<55dB@1M	<58dB@1M
Operating humidity		<95% ; non-condensing
Operating temperature		0-40℃
Altitude		<1000m for nominal power 【 >1000m the power derating is 1% every 100m 】
Physical
Dimension ( WDH)		260550740mm		44060588mm
Weight (with battery)		81.5 kgs	84 kgs	N/A	N/A
Weight (without battery)		31 kgs	33.5 kgs	14 kgs	16.5 kgs
✽Specification are subjected to change without further notice.
